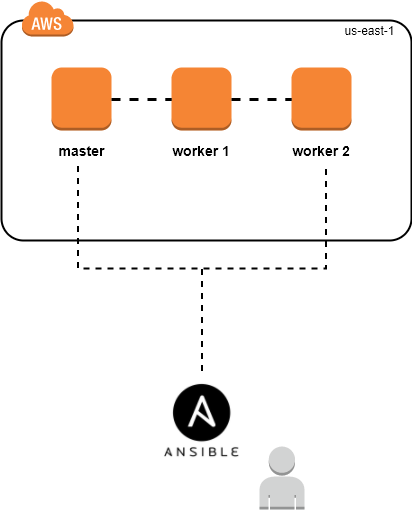

This post is part of “IaC” series explaining how to use Infrastracture as Code concepts with Terraform. In this part, I will show you how to setup a Swarm cluster on AWS using Ansible & Terraform as shown in the diagram below (1 Master and 2 Workers) in less than 1 min ⏱:



All the templates and playbooks used in this tutorial, can be found on my GitHub](https://github.com/mlabouardy/terraform-aws-labs/tree/master/docker-swarm-cluster). 😎

Note: I did some tutorials about how to get started with Terraform on AWS, so make sure you read it before you go through this post.

1 – Setup EC2 Cluster using Terraform

1.1 – Global Variables

This file contains environment specific configuration like region name, instance type …

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
variable "aws_region" {
description = "AWS region on which we will setup the swarm cluster"
default = "us-east-1"
}

variable "ami" {
description = "Amazon Linux AMI"
default = "ami-4fffc834"
}

variable "instance_type" {
description = "Instance type"
default = "t2.micro"
}

variable "key_path" {
description = "SSH Public Key path"
default = "/home/core/.ssh/id_rsa.pub"
}

variable "bootstrap_path" {
description = "Script to install Docker Engine"
default = "install-docker.sh"
}

1.2 – Config AWS as Provider

1
2
3
provider "aws" {
region = "${var.aws_region}"
}

1.3 – Security Group

This SG allows all the inbound/outbound traffic:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
resource "aws_security_group" "default" {
name = "sgswarmcluster"

# Allow all inbound
ingress {
from_port = 0
to_port = 65535
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}

egress {
from_port = 0
to_port = 65535
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}

# Enable ICMP
ingress {
from_port = -1
to_port = -1
protocol = "icmp"
cidr_blocks = ["0.0.0.0/0"]
}
}

1.4 – EC2 Instances

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
resource "aws_key_pair" "default"{
key_name = "clusterkp"
public_key = "${file("${var.key_path}")}"
}

resource "aws_instance" "master" {
ami = "${var.ami}"
instance_type = "${var.instance_type}"
key_name = "${aws_key_pair.default.id}"
user_data = "${file("${var.bootstrap_path}")}"
vpc_security_group_ids = ["${aws_security_group.default.id}"]

tags {
Name = "master"
}
}

resource "aws_instance" "worker1" {
ami = "${var.ami}"
instance_type = "${var.instance_type}"
key_name = "${aws_key_pair.default.id}"
user_data = "${file("${var.bootstrap_path}")}"
vpc_security_group_ids = ["${aws_security_group.default.id}"]

tags {
Name = "worker 1"
}
}

resource "aws_instance" "worker2" {
ami = "${var.ami}"
instance_type = "${var.instance_type}"
key_name = "${aws_key_pair.default.id}"
user_data = "${file("${var.bootstrap_path}")}"
vpc_security_group_ids = ["${aws_security_group.default.id}"]

tags {
Name = "worker 2"
}
}

Bootstrap script to install latest version of Docker:

1
2
3
4
5
#!/bin/sh
yum update
yum install -y docker
service docker start
usermod -aG docker ec2-user

2 – Transform to Swarm Cluster with Ansible

The playbook is self explanatory:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
---
- name: Init Swarm Master
hosts: masters
gather_facts: False
remote_user: ec2-user
tasks:
- name: Swarm Init
command: docker swarm init --advertise-addr {{ inventory_hostname }}

- name: Get Worker Token
command: docker swarm join-token worker -q
register: worker_token

- name: Show Worker Token
debug: var=worker_token.stdout

- name: Master Token
command: docker swarm join-token manager -q
register: master_token

- name: Show Master Token
debug: var=master_token.stdout

- name: Join Swarm Cluster
hosts: workers
remote_user: ec2-user
gather_facts: False
vars:
token: "{{ hostvars[groups['masters'][0]]['worker_token']['stdout'] }}"
master: "{{ hostvars[groups['masters'][0]]['inventory_hostname'] }}"
tasks:
- name: Join Swarm Cluster as a Worker
command: docker swarm join --token {{ token }} {{ master }}:2377
register: worker

- name: Show Results
debug: var=worker.stdout

- name: Show Errors
debug: var=worker.stderr

Now we defined all the required templates and playbook, we only need to type 2 commands to bring up the swarm cluster:

1
2
terraform apply
ansible -i hosts playbook.yml

Note: Make sure to update the hosts file with the public ip of each EC2 instance.

Setting up the Swarm cluster in action is show below 😃 :
